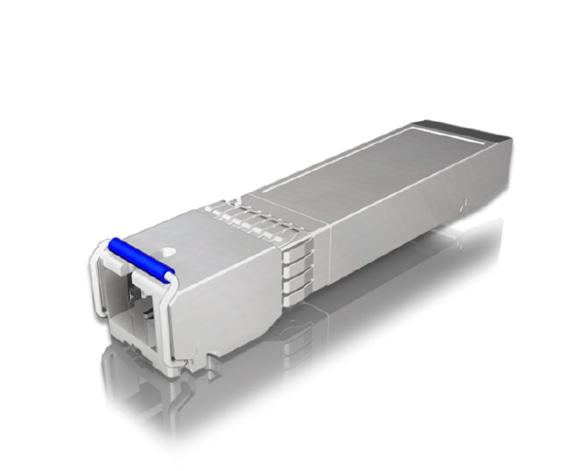

XGS-PON SFP+ ONU with MAC, SC/APC Receptacle Transceivers

1. Description:
This optical transceiver is an integrated SFP ONT, complying with the ITU-T G.9807.1 standard for 10-Gigabit-Capable Symmetric Passive Optical Network (XGSPON). Also this transceiver provides a pluggable SC/APC SFP compliant interface to upgrade existing devices for FTTx services.
In addition to its high performance profile, this SFP+ ONT implementation assures maximum compatibility and provides remote management via OMCI channel.

2. Features
- Smallest XGS-PON SFP+ ONT dimension
- Lowest power consumption XGS-PON ONT design
- Plug-able XGS-PON SFP+ ONT with SC/APC connector
- Complete XGS-PON ONT functionality (TR-156, SP/WRR QoS, DHCP etc)
- Supporting 1PPS synchronization interface
- Complied with 1588 v2
- Compliant with ITU-T G.9807.1
- ITU-T G.9807.1 OMCI standard
- Range up to 20km
- SC/APC Optical Interface
- Symmetric Data Rate: Tx: 9.95328Gbps ; Rx: 9.95328Gbps
- Operating case temperature options for consumer and industrial applications
- RoHs Compliant

3. Applications
- Residential home gateway
- Network switch/router, VDSL and MDU
- Mobile backhaul
