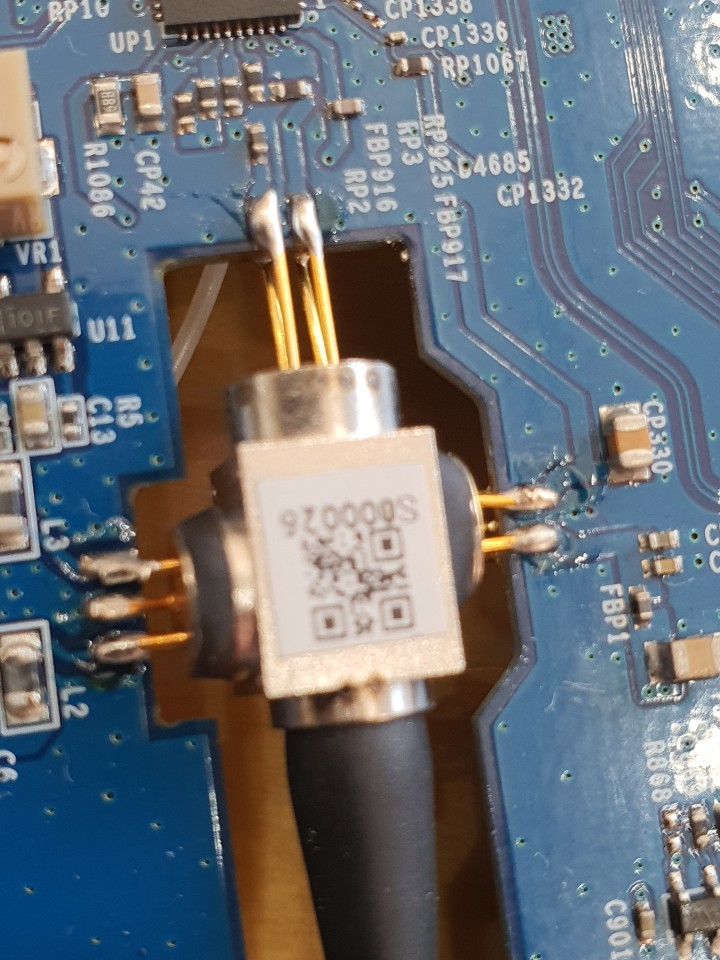

GPON ONU Triplexer OSA with SC-APC Pigtail

1. Features
- Single fiber bi-directional data links with Asymmetric Data Rate.
- DFB 1310nm laser diode as 1.244Gb/s transmitter.
- PIN 1490nm with TIA and 2.488Gb/s post amplifier receiver
- PIN 1550nm and 2.5GHz bandwidth receiver
- Single mode fiber package with Pigtail SC/APC connector.
- Kink free P-I characteristics with high return loss.
- RoHS compliant and lead-free.
- Excellent Reliability
- Operation Temperature: -10℃ ~ 85℃

2. Applications
- Meets ITU-T984.5.
- Gigabit Ethernet Passive Optical Networks (G-PON) – ONU Transceiver.

3. General
The BOSA is used for 1310nm Tx/1490(1480~1500nm) Rx 1.244Gbps/2.488Gb/s/1550nm Analog Rx Triplexer Optical Module OSA consists of 1310 nm multi-quantum-well structured DFB laser diode, a 1490 nm digital receiver and a 1550nm analog receiver integrated by a WDM filter.
It is suitable for passive optical network transceiver in ONU equipment of FTTP systems.
